Traditional
Architecture

전통건축소개

Because it is difficult to restore the original conditions of an architectural heritage once it is damaged, efforts are required to maintain and preserve the value and genuineness that the architectural heritage possesses. In particular, the retention of the original form in architectural heritage elements is a critical factor in determining the structure and exterior appearance of an architectural structure, and thus the level of authenticity that the elements retain is quite high. Replacement or repair of structural elements must therefore be minimized and conducted only under unavoidable situations, and recycling through restoration of elements is one of the most important research projects to maintain and inherit the values inherent in architectural heritage.
The means of reinforcement and restoration to reuse damaged wood elements include the traditional connection technique, filling, modeling adhesion, and hybrid technique.

Example of Application of the Hybrid Technique on Dori Elements: Utilizing Lag Bolts

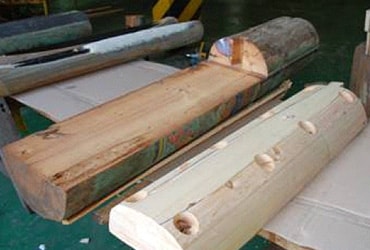

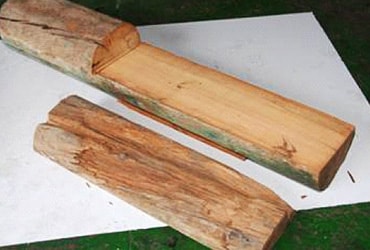

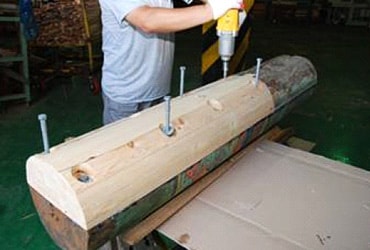

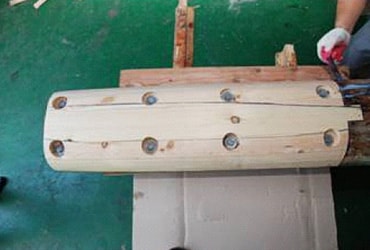

  • Restoration of damaged Dori elements in Sungnyemun Gate
  • Restoration of damaged Dori elements in Sungnyemun Gate
  • Restoration of damaged Dori elements in Sungnyemun Gate
  • Restoration of damaged Dori elements in Sungnyemun Gate
  • < Restoration of damaged Dori elements in Sungnyemun Gate >

Example of Application of the Hybrid Technique on Cheomcha Elements: Utilizing Lag Bolts

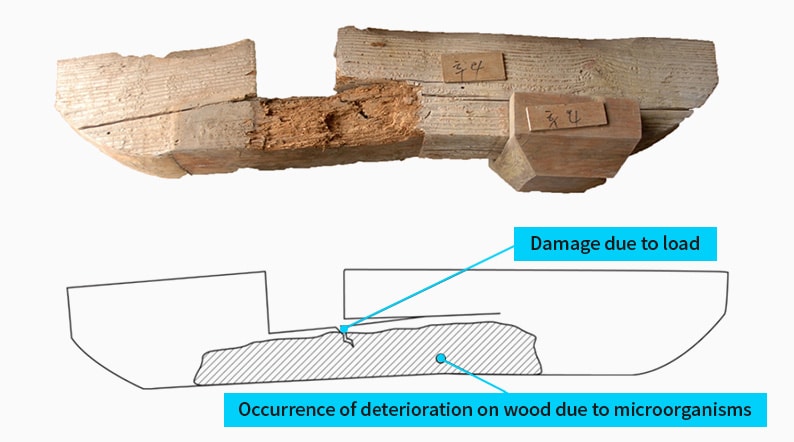

  • Damage due to load. Occurence of deterioration on wood due to microorganisms. <Restoration of Damaged Cheomcha Elements in Haetalmun of Dogapsa Temple>
  • next step

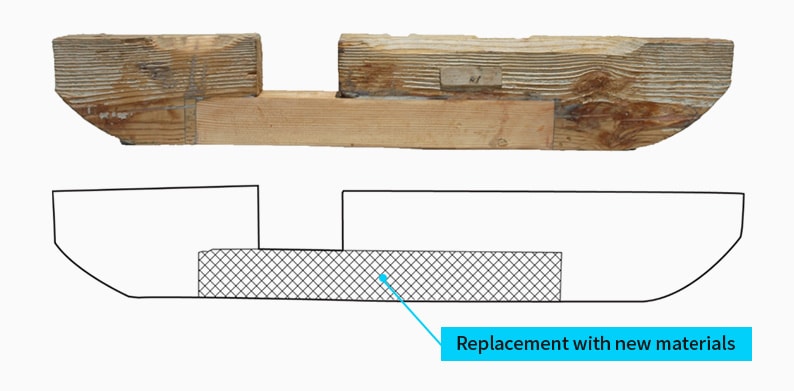

  • Replacement width new materials. <Restoration of Damaged Cheomcha Elements in Haetalmun of Dogapsa Temple>
  • < Restoration of damaged Cheomcha elements in Haetalmun of Dogapsa temple >

Example of Surface Restoration by Filling with Synthetic Resin

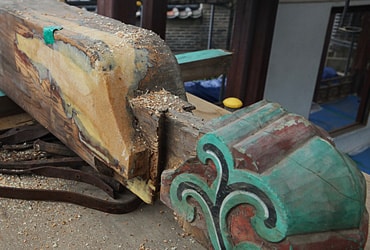

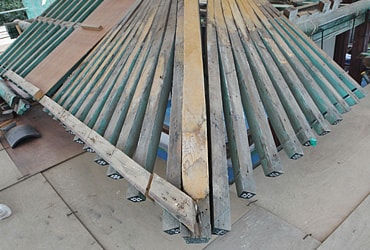

Angle rafter and Outstretching rafter

Angle rafter and outstretching rafter

Filling with
artificial resin
after removal of
corroded parts
Filling with artificial resin after removal of corroded parts
Daeryang

Daeryang

Restoration of elements with surface damage in Chwiunjeong of Changdeokgung Palace
